Overview

The system can detect various defects that occur during the manufacturing processes on the surfaces of various materials used for manufacturing PCB for electronic products.
In particular, one of the core and unique technologies of the company identifies and classifies micro defects accurately so that optimum yields can be achieved.

Specification

ItemSpecification
Vision systemCameraLensIllumination
4K, 6K, 8K Linescan 35mm, 50mm, 60mm, 80mm LED, Hologen, High frequency FL

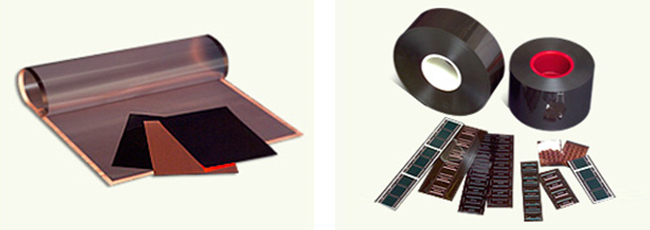

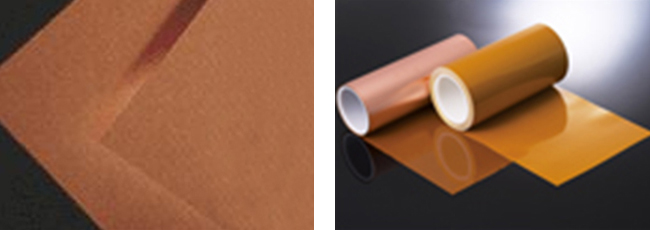

Inspection targets CCL, Copper Foil, RCC, MLB, FCCL
Product types roll to roll or sheet
Product specification Width of product, feeding speed
Defect types Pit, Dent, Scratch, Plate mark, CPS ….

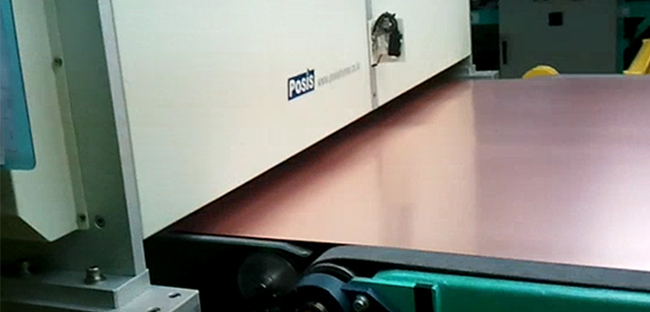

Example system configuration

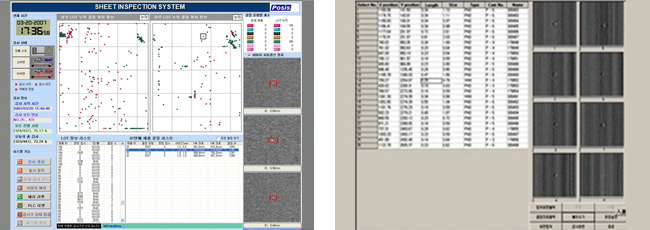

Main screen
